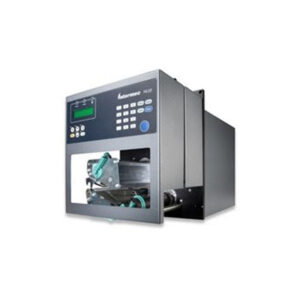

Máy in mã vạch Intermec PA30

Máy in mã vạch Intermec PA30
High performance print engine for demanding print and apply applications
Increases productivity and label placement accuracy
RFID Ready
Easily adapts to changing host environments and applications
Flexible and ample connectivity options
Interchangeable print head provides choice of resolutions

Tính năng của PA30
Product Overview
Intermec’s PA30 Print Engine is a rugged, reliable, metal, high performance applicator print engine designed to increase label placement accuracy and productivity in demanding 24/7 print and apply applications. The Intermec PA30 is easily upgradeable to RFID with Intermec’s IM4 RFID reader module.

With its extra input/output receptacle (I/O), the PA30 can execute user-defined programs thereby eliminating the need for a PC. Flexible connectivity enables the use of up to seven wired and wireless interfaces simultaneously allowing the PA30 to issue commands to production line machinery, conveyors, and other printers, as well as access information directly from the network host.

The Intermec PA30 is fully programmable is not restricted by printer command language.label printers It delivers investment protection by easily adapting to changing host environments and applications.

The PA30 can communicate with and replace competitive print engines without changes to host programming or label format design, providing additional functionality and continued investment protection.

The combination of powerful individually controlled micro-step motors, high capacity power supply and sophisticated thermal management print head ensures high-quality labels each and every time at up to 12 inches (30.5 cm) per second (first to last label).

Based on PX printer technology, proven technology used in variety of custom made applicators, the PA30 features 4-inch (10 cm) print width with left hand orientation and the same 5-bolt pattern used in other OEM Print Engine products. The PA30 is available with interchangeable 203 or 300 dpi resolution print heads.

Bộ sản phẩm bao gồm :

Máy in mã vạch

Cáp usb

Sách hướng dẫn sử dụng

Thông số kĩ thuật :

Environment
Operating Temperature:
+5° to +40°C (+40° to + 104°F)
Humidity:
10-90% RH non-condensing

Interfaces
Standard:
• Applicator Interface
• RS232, up to 115.2 kb/s
• USB 2.0
• EasyLAN 10/100BaseT internal Ethernet
Optional:
• EasyLAN Wireless Internal Ethernet Optional interfaces available as accessories:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)*
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop

Chính sách bảo hành:

12 tháng máy

3 tháng đầu in và cáp

Brand

Honeywell
